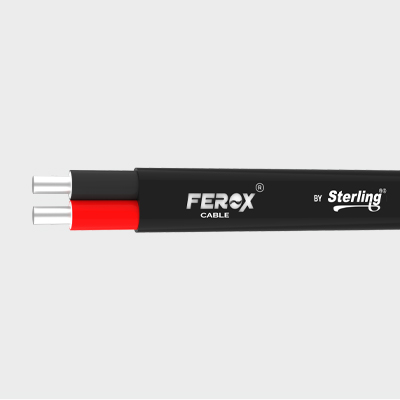

TWIN FLAT ALUMINIUM CABLE
CONDUCTOR
- Conductor : Solid high-grade aluminium
- Insulation : PVC
- Sheath : Special grade tough PVC
SPECIAL FEATURES:
- Ultra tough, resistant to abrasion and harsh weather
- Excellent mechanical & electrical properties
| PVC. INSULATED & SHEATHED ROUND UNARMOURED ALUMINIUM CABLES UPTO 1100 V GENERALLY CONFORMING TO IS 694:2010 |
| Conductor |
PVC Insulation |
PVC Sheath |
Current Rating at 40C In Amps. |
Max D/C Resistance 20C ohm./Km. |
| Nominal C/S Area of Conductor in Sq. mm. |
Conductor Construction No./mm. |
Nominal Insulation Thickness in mm. |
Approx Core Dia. In mm. |
Nominal Thickness in mm. |
Max Overall Dimensions |
| Height in mm. |
Width in mm. |
| 2.50 |
1/1.78 |
0.7 |
3.3 |
1.0 |
6.60 |
10.5 |
18 |
12.10 |
| 4.00 |
1/2.24 |
0.8 |
3.8 |
1.0 |
7.40 |
12.0 |
23 |
7.41 |
| 6.00 |
1/2.76 |
0.8 |
4.5 |
1.1 |
8.00 |
13.0 |
30 |
4.61 |
| 10.0 |
1/3.57 |
1.0 |
5.3 |
1.4 |
9.60 |
16.0 |
40 |
3.08 |
